TCS WOWSound 101KA DCC/Sound Decoder with KEEP ALIVE®

SKU WOW101KA
$129.99
In stock
1
Product Details

TCS WOWSound 101KA DCC/Sound Decoder with KEEP ALIVE®

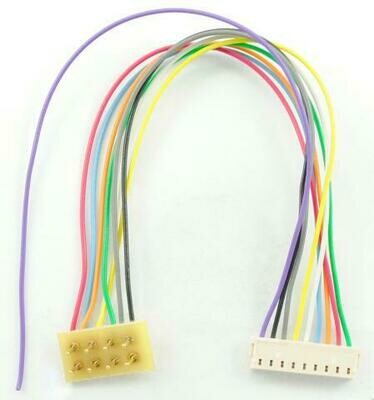

The WOW101 is a universal decoder for Steam Locomotives. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug. The WOW101 includes a 9-Pin T-Series harness and also includes an auxiliary harness for attaching your speaker, CAM, Keep Alive®, and for the additional lighting functions (F3 and F4). A KA3 Keep Alive® Module provides 12-22 seconds of non-powered operation for continuous running over problem track sections.

FEATURES:

  • CD-Quality Sound:
  • TCS' world-renowned CD-quality sound. 16 Bits of resolution at 44.1kHz sample rate.

  • Back EMF Load Compensation:
  • Provides superior slow speed control and high performance under load.

  • Quiet Drive:
  • Super-quiet motor control for "buzz" free motor performance.

  • DC Mode:
  • Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.

  • Variable Momentum:
  • Allows you to make custom acceleration and deceleration curves.

  • Incandescent Bulb Support:
  • This decoder can be used with 12 Volt bulbs.

  • Function Remapping:
  • Buttons 0 through 12 may be used to control the lighting functions of this decoder.

  • Programmable Lighting Effects:
  • Choose from 20 separate user-programmable lighting effects!

  • Dimmable Brightness:
  • Configure multiple different brightness levels for your LED's or incandescent bulbs.

  • Decoder Lock:
  • Feature which prevents accidental/unwanted programming while activated.

  • Airwire™ Compatible:
  • Fully compatible with Airwire™ operation.

  • CAM:
  • Use a positive voltage trigger to synchronize your chuff rate to your drivers' rotation.

  • Audio Assist®:
  • TCS exclusive auditory feedback programming system. Program your decoder without the need to memorize CV's!

  • User-Loadable Speed Tables:
  • Configure custom speed curves and set speed limits.

  • Throttle Modes:
  • Choose from multiple throttle modes to meet your operating needs.

  • True Scale Sound:
  • A unique WOWSound feature which uses TCS’ exclusive auto-adjusting BEMF technology to automatically change the intensity of the chuff. Prototype Mode also offers dynamic sound volumes which accurately model the real-life equivalent. Also includes pre-programmed acceleration and deceleration values.

    THIS DECODER REQUIRES INSTALLATION
