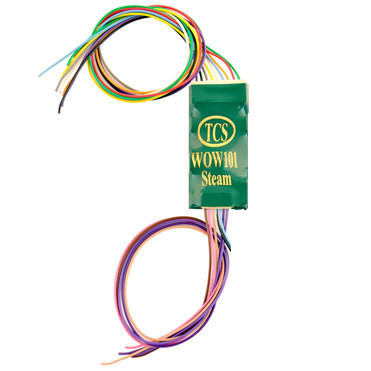

The WOW101 is a universal decoder for Steam Locomotives. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug. The WOW101 includes a 9-Pin T-Series harness and also includes an auxiliary harness for attaching your speaker, CAM, Keep Alive®, and for the additional lighting functions (F3 and F4).
TCS' world-renowned CD-quality sound. 16 Bits of resolution at 44.1kHz sample rate.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Super-quiet motor control for "buzz" free motor performance.
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Feature which prevents accidental/unwanted programming while activated.
Fully compatible with Airwire™ operation.
Use a positive voltage trigger to synchronize your chuff rate to your drivers' rotation.
TCS exclusive auditory feedback programming system. Program your decoder without the need to memorize CV's!
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
Choose from multiple throttle modes to meet your operating needs.
True Scale Sound:
A unique WOWSound feature which uses TCS’ exclusive auto-adjusting BEMF technology to automatically change the intensity of the chuff. Prototype Mode also offers dynamic sound volumes which accurately model the real-life equivalent. Also includes pre-programmed acceleration and deceleration values.
